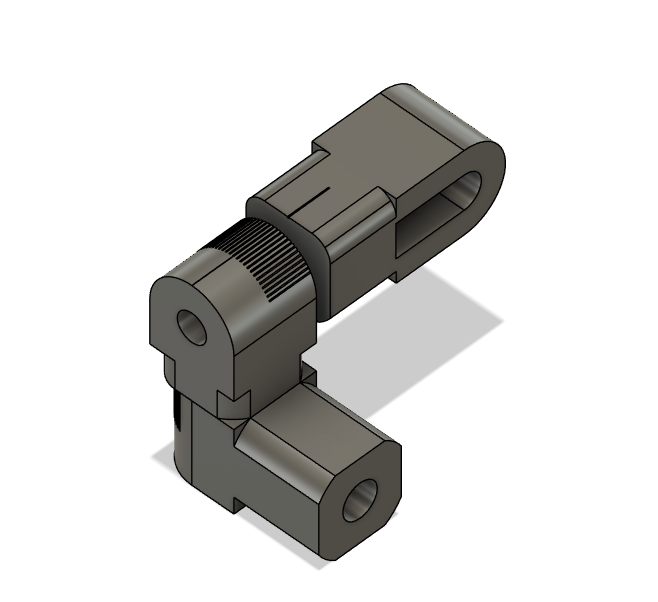

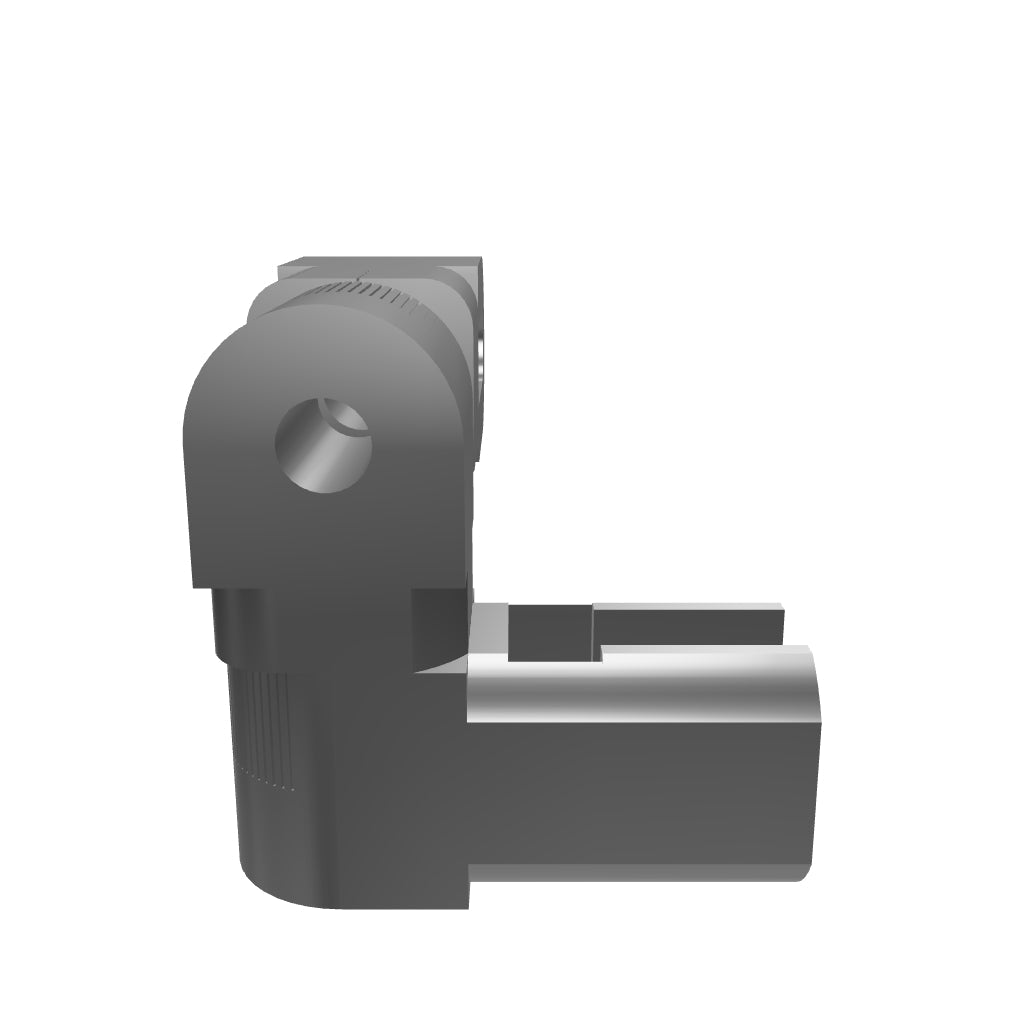

Side Bar Mount

A stabilizer side bar mount with quick disconnect for testing how a side bar affects your system. Not for recommended for daily use (but I have shot an entire indoor season with them).

-Use a standard 5/16-24 thread hex nut up to 0.50" wide and 0.274" thick to mount stabilizer to side bar mount.

-Use a standard 5/16-24 x 3/4" hex socket bolt with head diameter of 0.48" to mount side bar bracket to bow.

-Use two 1/4-20 x 1-1/4" bolts and 1/4-20 nuts to assemble side bar bracket.

Print it For Me - Coming Soon Includes:

3D printed parts.

1 x 5/16-24 hex nut (attach stabilizer to side bar mount)

1 x 5/16-24 x 3/4" hex socket bolt (attach side bar mount to Bow)

2 x 1/4-20 x 1-1/4" bolts and 1/4-20 nuts (to assemble side bar mount)

*IT IS MADE OF PLASTIC, DO NOT EXPECT IT TO HOLD A 36" BAR WITH 48oz OF WEIGHT

Print it Myself Includes:

STL files for side bar mount (3 files).

(Recommend printing in PETG/ABS/Nylon)

*Digitally downloaded files are under a strict, non-commercial license. See terms of service for details.
